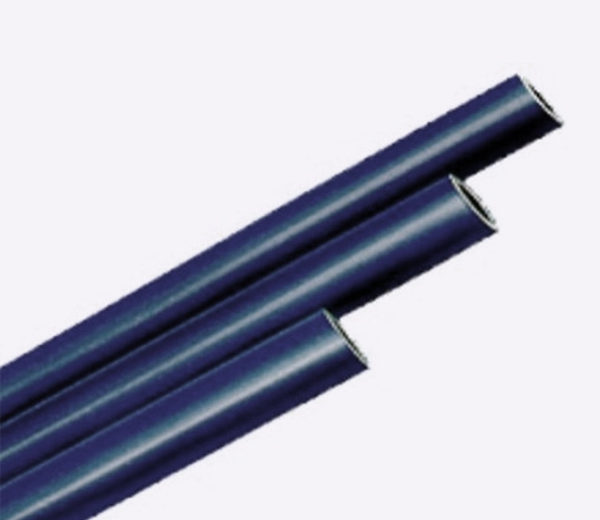

Flexible Color Hose
Flexible Color Hose
- APPLICATIONSFor equipment requiring various colors
For Robot Arm, factory automation equipment
For other industries - FEATURESExcellent pressure resistance due to full-face knitting method manufacturing
Wide range of color choices
Light and flexible, excellent workability
SPECIFICATIONS
| Nominal Dimension (공칭치수) |
Inner Diameter (mm) (내경) |
External Diameter(mm) (외경) |
PressureMpa(kgf/cm²), 20°C (압력) |
Packing Length (m) (포장단위) |
|||
|---|---|---|---|---|---|---|---|
| Standard (기준) |
Deviation (허용차) |
Standard (기준) |
Deviation (허용차) |
Working Pressure (kgf/cm²) (사용압력) |
Brusting Pressure (kgf/cm²) (파열압력) |
||
| 6 | 6.8 | ±0.60 | 12.5 | ±0.50 | 30 | 140 | 50/100/150 |
| 9 | 9.0 | ±0.70 | 16.5 | ±0.50 | 30 | 130 | 50/100/150 |
| 10 | 10.0 | ±0.70 | 17.0 | ±0.50 | 30 | 130 | 50/100/150 |
| 13 | 13.2 | ±0.70 | 21.0 | ±0.50 | 30 | 130 | 50/100/150 |
| 15 | 15.2 | ±0.70 | 25.0 | ±0.50 | 30 | 120 | 50/100/150 |
| 19 | 19.0 | ±0.70 | 30.0 | ±0.50 | 30 | 100 | 50 |
| 25 | 25.0 | ±0.70 | 36.0 | ±0.50 | 30 | 100 | 50 |
Note: The length of the product can be customized in consultation with our global sales manager.
호스의 길이는 본사 영업담당자와 협의하여 별도 생산이 가능합니다.
