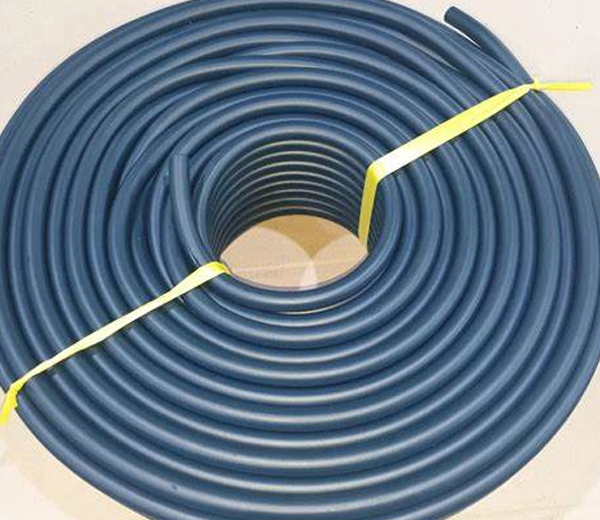

Oil Hose
Oil Hose
- APPLICATIONSIn addition to oil transportation, it can be used in various fields such as air hose, industrial hose, and industrial hose.
Suitable for use in automated equipment - FEATURESDoes not age even after long-term use
Excellent oil resistance and weather resistance (easy to use with oils such as kerosene and diesel)
Product that has completed cold resistance test according to ASTM D746 test method
SPECIFICATIONS
| Nominal Dimension (공칭치수) |
Inner Diameter (mm) (내경) |
External Diameter(mm) (외경) |
PressureMpa(kgf/cm²), 20°C (압력) |
Packing Length (m) (포장단위) |
|||
|---|---|---|---|---|---|---|---|
| Standard (기준) |
Deviation (허용차) |
Standard (기준) |
Deviation (허용차) |
Working Pressure (kgf/cm²) 사용압력 |
Brusting Pressure (kgf/cm²) (파열압력) |
||
| 8 | 8 | ±0.70 | 14.0 | ±0.50 | 50 | 150 | 50/100/150 |
| 9.5 | 9.5 | ±0.70 | 16.0 | ±0.50 | 50 | 150 | 50/100/150 |
| 13 | 13 | ±0.70 | 20.6 | ±0.50 | 50 | 150 | 50/100/150 |
| 19 | 19 | ±0.70 | 30.0 | ±0.50 | 30 | 120 | 50 |
| 25 | 25 | ±0.70 | 35.0 | ±0.50 | 30 | 100 | 50 |
"Note: The length of the product can be customized in consultation with our global sales manager.
호스의 길이는 본사 영업담당자와 협의하여 별도 생산이 가능합니다."
