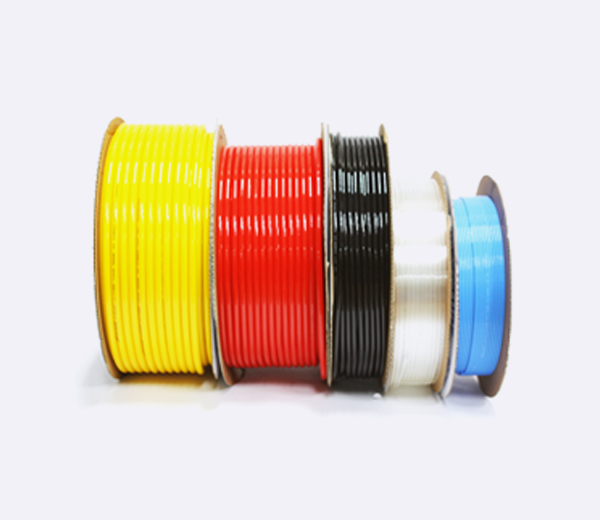

Polyurethan Tube
Polyurethan Tube
- APPLICATIONSUsed in a variety of piping applications including air, water, oil and chemicals
- FEATURESExcellent resistance to pressure, vibration, rust, heat, chemicals, and oil
Light weight and softness improve the productivity of piping work
Wide application temperature range
Low absorption rate and physical performance
Excellent weather resistance
Usage temperature: -40°C to 80°C
SPECIFICATIONS
| Model No. | Size | O/D (mm) | I/D (mm) | Thickness (mm) | Brust Pressure (Kg/cm² at20℃) |
Min Curvature Radius |
Weight(g/m) | Commo Pressure (Kg/cm² at20℃) |
COLOR |
|---|---|---|---|---|---|---|---|---|---|
| SPPU-2410 | 4X2 | 4 | 2 | 1 | 23 | 10 | 11 | 7 | Transparent Milky Blue Red Green Black |
| SPPU-2411 | 6X4 | 6 | 4 | 1 | 23 | 15 | 19 | 7 | |
| SPPU-2412 | 8X5 | 8 | 5 | 1.5 | 23 | 23 | 37 | 7 | |
| SPPU-2413 | 10X6.5 | 10 | 6.5 | 1.75 | 23 | 30 | 55 | 7 | |
| SPPU-2414 | 12X8 | 12 | 8 | 2 | 23 | 35 | 76 | 7 | |
| SPPU-2415 | 16X2 | 16 | 12 | 2 | 23 | 60 | 106 | 7 | |
| SPPU-2416 | 1X4 | 6.35 | 4.57 | 0.89 | 18 | 20 | 18 | 6 | |
| SPPU-2417 | 3/8 | 9.53 | 6.99 | 1.27 | 18 | 28 | 39 | 6 | |
| SPPU-2418 | 1/2 | 12.70 | 9.56 | 1.57 | 18 | 45 | 65 | 6 |
NOTE: The length of the product can be customized in consultation with our global sales manager.
